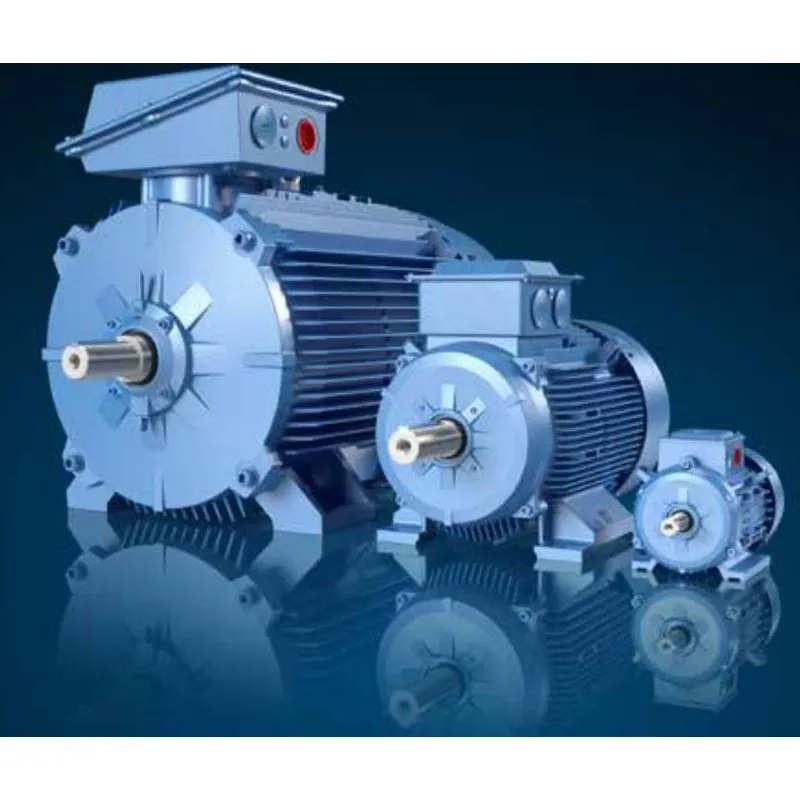

M3JP low voltage dust explosion-proof IE3 motor

M3JP low voltage dust explosion-proof IE3 motor

Type of protection Ext

Housing type IEC 200 - 355

Housing material Cast iron

Number of poles 2 - 6

Voltage Rating All common voltages

Frequency 50 or 60 Hz

Protection class IP 55 or IP 65

Protection type for zone 21: EPL Db, T 125°C, IP65

For Zone 22: EPL Dc, T 125°C, IP55 or IP65

Approvals IECEx / ATEX and other national approvals such as CU-TR (Russia, Belarus, Kazakhstan), CQST (China) and INMETRO (Brazil)

Features - certified for use with inverters

- Variable designs available for different standards in the oil and gas industry

- Type approved by most classification societies

- Application-specific designs available

Description

Equipment protection levels Db and Dc for zones 21 and 22

ABB offers a full range of IECEx/ATEX certified low-voltage dust-proof IE3 high-efficiency motors. This range of motors is designed to meet the specific needs of each customer and each application.
