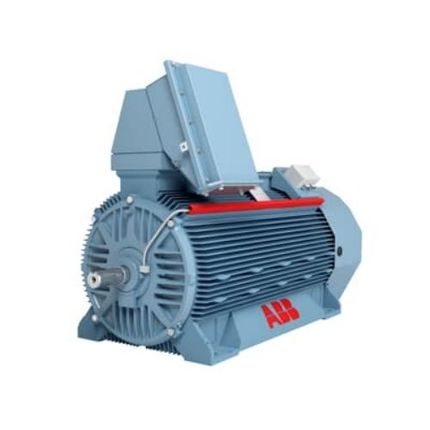

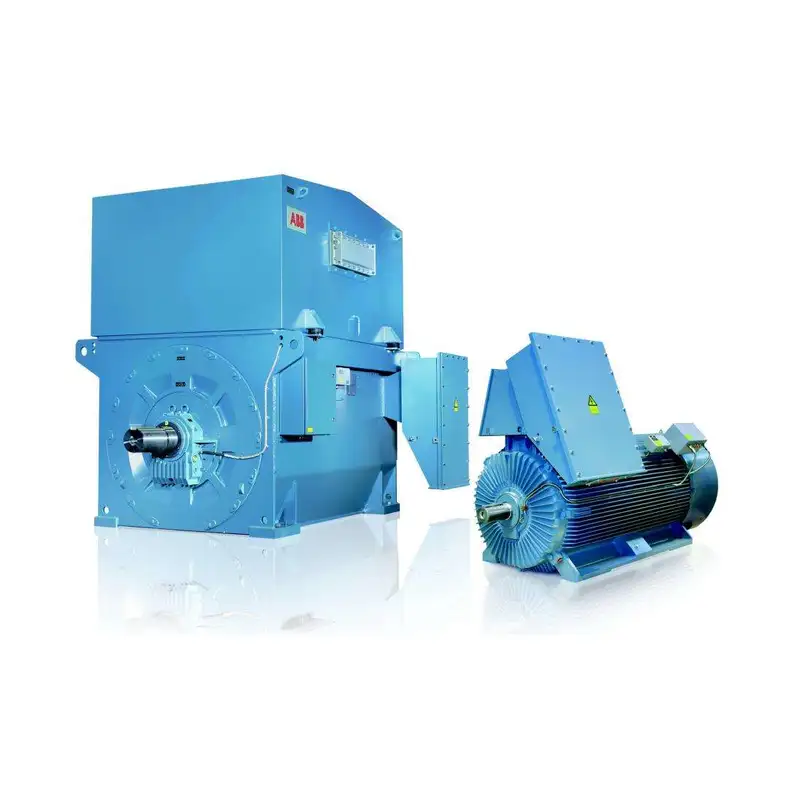

High Voltage Ribbon Cooled Motors, HXR Series

ABB High Voltage Ribbon Cooled Motors, HXR Series

High efficiency levels

Output Power 100 - 2250 kW /150 - 3000 HP

Chassis size IEC 355 - 560 14.5 - 22

Number of Poles 2 – 12 POLES

Voltage 380 - 11500 V

Frequency   50/60 Hz

Protection grade IP55, IP56  IC411, IC416

Housing material Cast iron

Motor type HXR

Installation method Vertical or horizontal

Standard IEC, NEMA, BS, ANSI, IEEE, VDE, EN

(Classification Society Certification  )LRS, DNV, BV, ABS


Description

ABB's TEFC (Totally Enclosed Fan Cooled) motors, the HXR Series, are tailored to meet each customer's specified application.

Typical applications include pumps, fans, blowers, compressors, conveyors, shredders, as well as marine propulsion and alternators. the HXR series motors are ideal for powering equipment in power plants, process industries, and numerous other continuously operating applications.

Through efficient use of materials and optimized fan design, HXR motors ensure minimal losses. By reducing losses in the center of the rotor and in the fan, the motor's efficiency curve does not drop significantly even when full load is not achieved.



Technical parameters

Value embodiment.

Industry-proven design - more than 20 years of continuous production

Installed applications in harsh conditions and environments

Low noise levels - most noise measurements less than 80 dB(A) at 1 m from the motor

Certified spark-free design

Certified for use in harsh installation conditions

Cast iron base for robust mechanical construction

Wide range of optional accessories

Configurable to meet different needs
