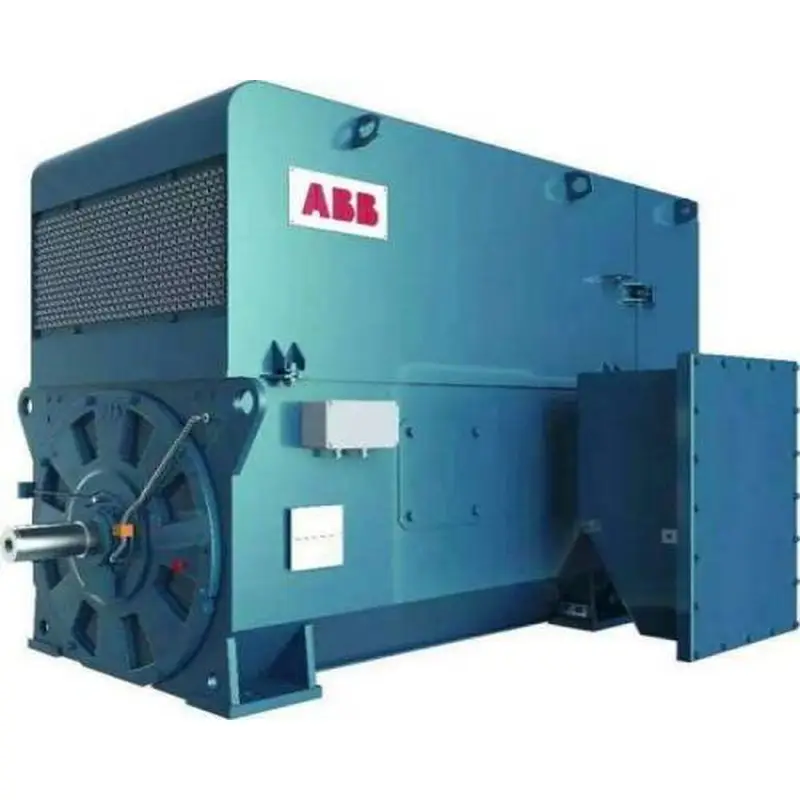

High-voltage modular induction motors

ABB High-voltage modular induction motors

Output Power: 140 - 23000 kW, 50Hz,200 - 30000 HP, 60 Hz
Number of poles:2 - 24 poles
Voltage:  380 - 13800 V
Frequency: 50 - 60 Hz
Protection grade IP23, IP54,   IP55, IPW24,IC01, IC611, IC81W
Housing material:Structural steel
Motor type: AMA, AMI
Installation   method  Vertical or   horizontal
Standard:IEC, NEMA, Motor   standards with special requirements from countries and customers






Description

ABB high voltage modular induction motors are designed for high operating efficiency, reliability and availability in harsh and demanding process applications.



All ABB high voltage modular induction motors are tailored to meet the exact needs of each customer and each application. Based on the motor industry's successful modular platform, each module is designed to meet the needs of a wide range of demanding applications while providing the flexibility to be configured for the specific application.



With a wide range of options, multiple housing and cooling options, compliance with all international standards, optimized design for variable frequency control, and rigorous testing at every stage of the production process, High Performance Motors can be sized and configured for a wide range of applications such as pumps, fans, compressors, as well as blowers, conveyors, crushers, and marine propulsion.



Technical specifications

Using modular "design and build" principles, every design detail and structure of ABB's high-voltage modular induction motors is designed to maximize motor performance and service life, and reduce total cost of ownership.

Cooling system

Effective cooling is essential to achieve high motor performance in all operating conditions, and ABB offers a variety of symmetrical and asymmetrical cooling systems to meet all types of operating requirements. These cooling systems include open air cooling systems for open-air environments and fully enclosed cooling systems with air-to-air and water cooling units.
