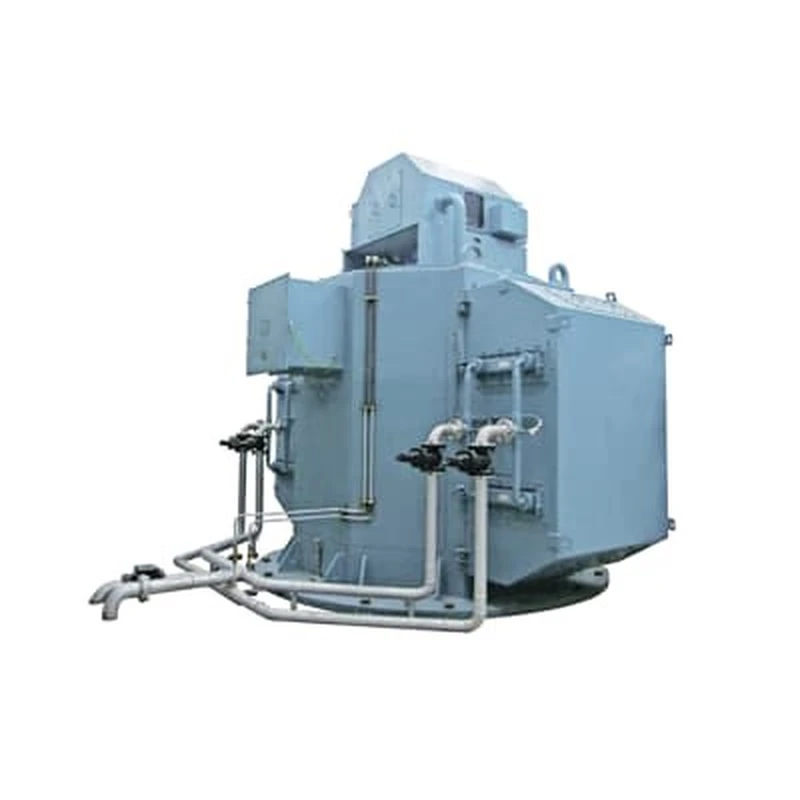

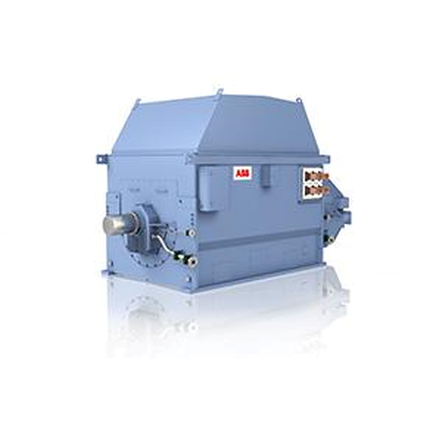

ABB 8-40 pole direct start synchronous motors

ABB 8-40 pole direct start synchronous motors

Output power 1 - 65 MW

Block type 0710 - 2500

Number of poles 8 - 40

Voltage 1 - 15 kV

Frequency 50 or 60 Hz

Protection class IP23, IPW24, IP44, IP54, IP55

Cooling method IC01, IC611, IC81W

Housing material Welded steel

Motor type AMZ

Mounting method Horizontal or vertical

Standards IEC and NEMA

Classification society approvals All international classification societies such as ABS, BV, DNV and GL

Applications Chippers, crushers, extruders, grinders, pumps, reciprocating compressors, refiners, SAG and ball mills, condensers

Description

Industrial processes require high-powered, low-speed motors with high reliability. Our synchronous motors are compact, lightweight and easy to retrofit. In all cases, we are always in sync with our customers, ensuring that their specific needs are met with our unique technical application expertise.

Our products are designed to increase product efficiency, extend service life and reduce overall lifecycle costs, with up to 90% of parts being reused.

ABB direct start low-speed synchronous motors feature a flexible design concept, which allows motor configurations to meet almost any type of application, device and requirement. This proven design concept has demonstrated excellent performance and reliability in a wide range of applications.



Technical Data

Customer value

High power

High torque

High efficiency

High availability with power factor compensation

Low cost of ownership

High reliability



ABB synchronous motors are based on a proven design with high availability and reliability. The motor is designed to ensure a low cost of ownership. This means that major cost of ownership, losses and downtime throughout the motor's life cycle have been significantly reduced in the motor design. This concept has been proven and refined over a long period of application experience.
