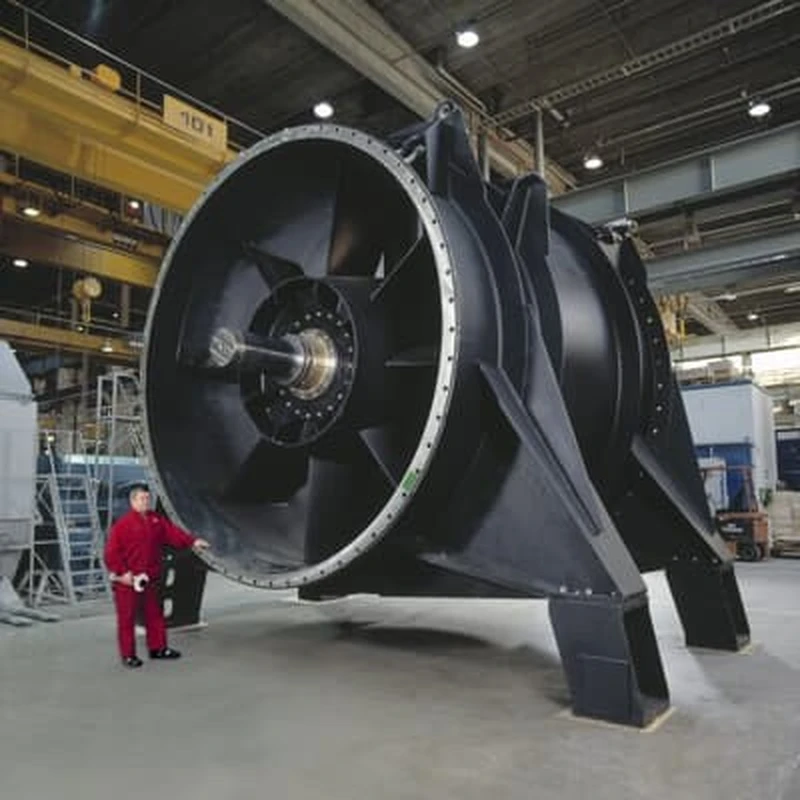

4-40-pole synchronous inverter motor

ABB 4-40-pole synchronous inverter motor

Output power 1 - 65 MW

Machine base type 0710 - 2500

Number of poles 4 - 40

Voltage 1 - 15 kV

Frequency 50 or 60 Hz

Protection class IP23, IPW24, IP44, IP54, IP55

Cooling IC01, IC611, IC81W, IC8A6W7

Housing material Welded steel

Motor type AMZ

Mounting method Horizontal and vertical

Standards IEC and NEMA

Classification society certification All international classification societies such as ABS, BV, DNV and GL

Applications Electric propulsion units, Azipod propulsion units

Metallurgical and mining applications (coiling machines, edge banding machines, mill stands and cranes, etc.)


Industrial processes require high-powered, low-speed motors with high reliability, and ABB offers a wide range of synchronous motors for speed regulation or constant speed applications. Our synchronous motors are compact, lightweight and easy to retrofit to meet a wide range of needs. In all cases, we are always in sync with our customers, ensuring that their specific needs are met with our unique technical application expertise.

Our products are designed to increase product efficiency, extend service life and reduce overall life cycle costs, with up to 90% of parts being reused.


Technical Parameters

Customer value

High power

High torque

High efficiency

Proven reliability

Low cost of ownership

Low losses

ABB synchronous motors are based on proven designs with high availability and reliability. The motors are designed to ensure a low cost of ownership. This means that major cost of ownership, losses and downtime throughout the motor's life cycle have been significantly reduced in the motor design. This concept has been validated and improved over time in application experience. Furthermore, ABB synchronous motors and inverters are optimally combined to achieve high performance, safety and reliability.
