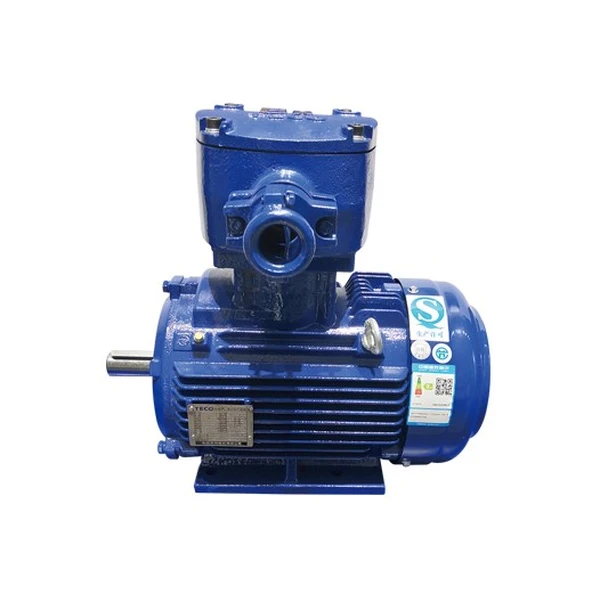

TECO Variable frequency explosion-proof motor

TECO Variable frequency explosion-proof motor

Frequency range: Self-cooling frequency conversion(IC411):VT 5~50HZ,CT 25~50HZ,CP 50~100HZ;Strong cooling frequency conversion(IC416):VT 5~10HZ,CT 10~50HZ

Explosion-proof grade: Exd IIBT4/Exd IICT4

Rated voltage: 380V or other voltage

Rated frequency: 50HZ, 60HZ

Output power: 0.18KW~355KW

Working system: Continuous working system SF1.0, optional (SF1.0~1.3)

Protection grade: Exd IIB T4 Gb:IP55; Exd IIC T4 Gb(F#80~255), Exd II (H2) Gb(F#250~355):IP55, IP56, IP65, IP66

Cooling method: IC411, IC416

Insulation grade: F class insulation

Temperature rise: Grade B stator winding temperature rise: resistance method in the case of S.F: 1.0 does not exceed 80K

Use place: Explosive gas zone 1, zone 2 places

Ambient temperature: -20~50℃(Other circumference temperature is optional)

Certification: IECEx/ATEX certification


TECO Explosion-proof Motor Use Place


Explosion-proof motors are mainly used in coal mines, oil and gas, petrochemical and chemical industries. In addition, it is also widely used in textile, gold, city gas, transportation, grain and oil processing, paper making, medicine and other sectors.


The above industries may produce a variety of combustible gases or vapors in the production process, these substances mixed with air to form an "explosive gas mixture". If this mixture is at an explosive temperature, it will cause an explosion when it encounters an ignition source.


TECO "Exd" type explosion-proof motor, its shell can withstand the internal explosion of combustible mixtures penetrating into the shell through any joints or structural gaps in the shell without damage, and will not cause the ignition of the external explosive environment formed by one or more gases or vapors.


TECO explosion-proof motor application industries


-Sulfur ammonia manufacturing industry -Textile manufacturing industry -Chemical fiber manufacturing industry


-Insecticide and sterilization manufacturing industry - Paint manufacturing industry - Synthetic resin manufacturing industry


-Petrochemical manufacturing industry -Compressed and liquefied gas manufacturing industry


-Soda manufacturing -Plastic goods manufacturing -Medical supplies manufacturing -Other manufacturing
