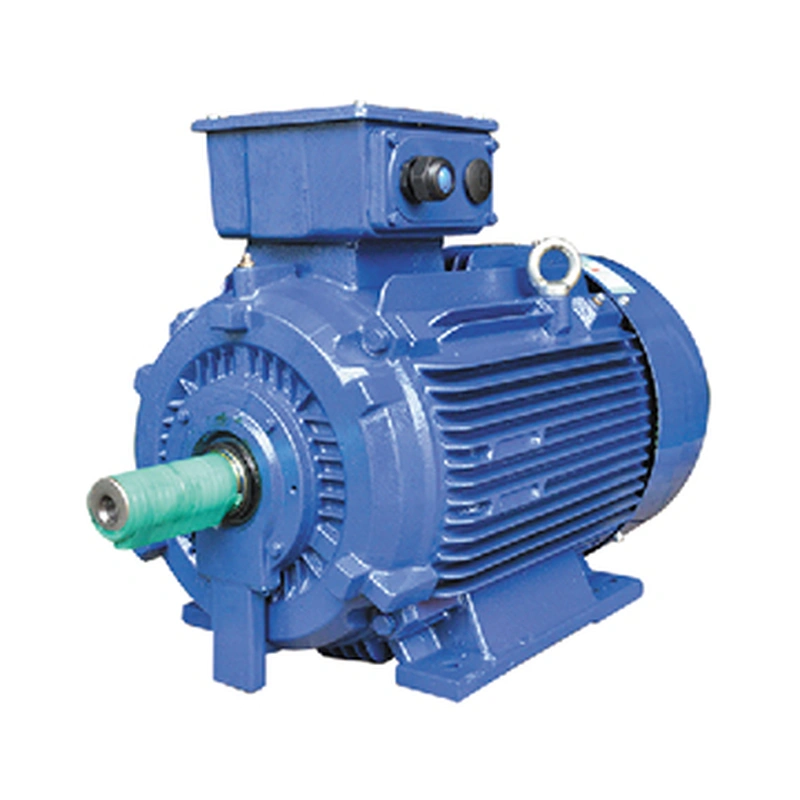

TECO Motor AEEV4N Super Super High Efficiency Three-phase Asynchronous Motor (MODEL:TEV4) Technical Data
Type:Three-phase asynchronous motor
Design basis:IEC60034;Chinese national standard GB755
Rated voltage:380V or other voltage
Rated frequency:50HZ or 60Hz
Output power: 0.55~400kW
Working system: continuous working system
Block number: 80~355C
Cooling method: IC411
Insulation level:F class insulation
Temperature rise: S.F.1.0 (50Hz) when using the resistance method to assess the stator winding temperature rise, 2P & 4P 200KW, F # 355M, F # 355L temperature rise does not exceed 105 ℃, other specifications temperature rise does not exceed 80 ℃
Installation method: IMB3 (horizontal foot mounting); IMB35 (horizontal foot mounting with large flange) and other motor parameters and installation dimensions refer to the attached table.
Energy efficiency level in line with Chinese national standard GB18613-2020 energy efficiency and international IEC energy efficiency standards.
