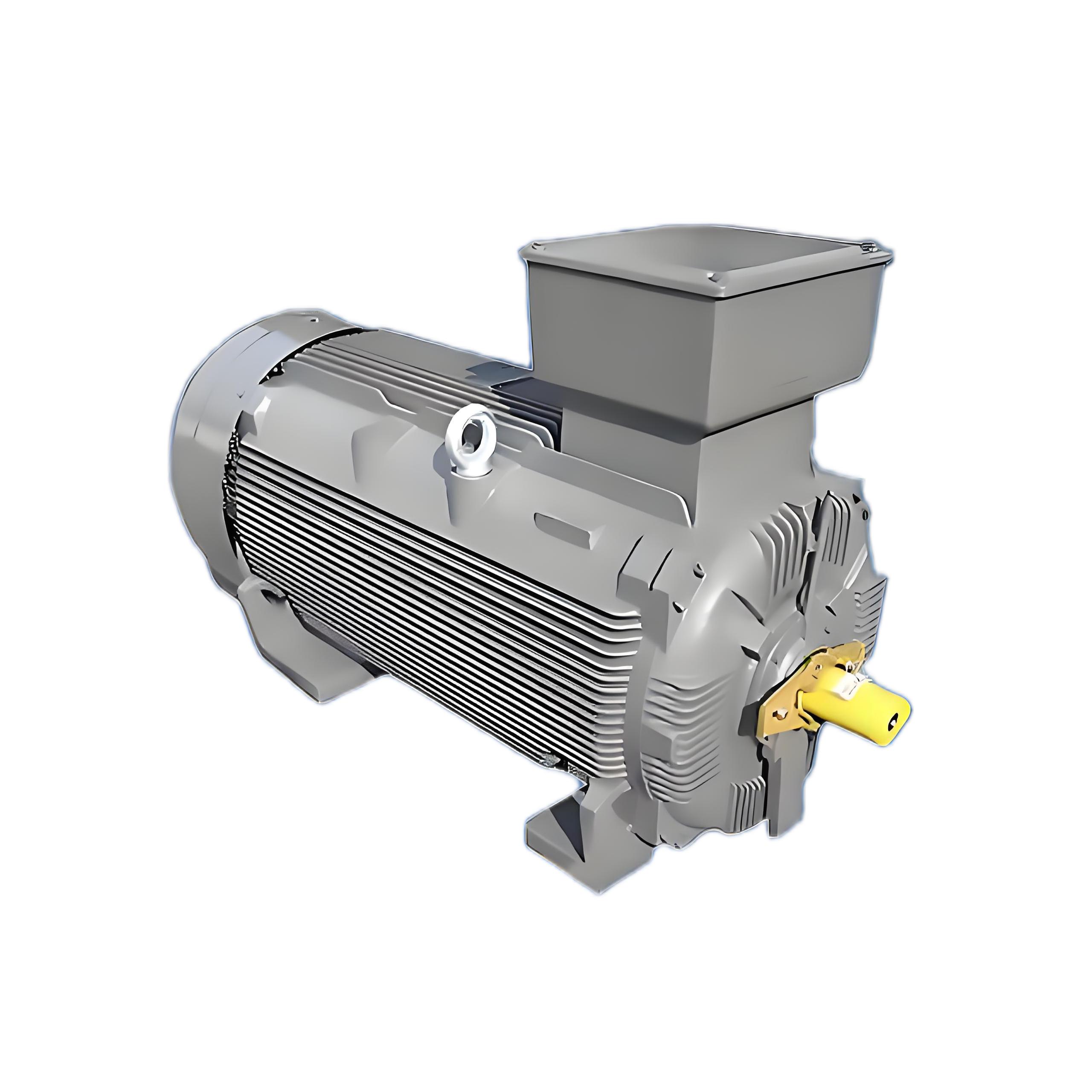

TECO dust explosion-proof motor

TECO dust explosion-proof motor

Explosion-proof grade: ExtD A21 T135℃ IP65

Rated voltage: 380V or other voltage

Rated frequency: 50HZ, 60HZ

Output power: 0.55KW~400KW

Working system: Continuous working system SF1.0, optional (SF1.0~1.3)

Cooling method: IC411

Insulation grade: F-class insulation

Temperature rise: Class B stator winding temperature rise: resistance method in the case of S.F: 1.0 does not exceed 80K

Use place: Zone 21 or Zone 22

Ambient temperature: -20 ~ 50 ℃ (optional other circumference temperature)


Features of TECO explosion-proof motor products


1、Adopt the most advanced Exd IIB T4 ,Exd II CT4 design, can be operated safely in explosive areas


2、The main structure is made of high-strength steel, which is safe and reliable.


3, in line with GB18613-2020 energy efficiency standards, is a new generation of high-efficiency and energy-saving explosion-proof motor


4, IP55 protection structure, dustproof, waterproof flowers and oil foam, cast iron frame, strong structure, in line with national standards, safety more secure


5, using TECO F-class insulation, high heat resistance, strong electrical shock resistance, long insulation life, and can also perform in harsh environments


6、Using imported brand bearings and silicon steel sheets of famous steel mills, the performance is more guaranteed. Standardized design, excellent materials, advanced processing equipment and perfect quality assurance system, which is expressed in high efficiency, low vibration, low noise, safety and reliability.
